DIN 1.2083/420/S136 tool steel plate & sheet for plastic die
S136--Martensitic stainless chromium steel for plastic moulds.It can be produced on request by the process ESR and quenched and tempered condition.
DIN 1.2083 steel is chromium alloyed stainless plastic mold steel. It is equivalent to AISI 420 steel. The steel 1.2083 is a major steels for hot pressing in circulation.
1.2083 stainless steel is generally supplied annealed condition with a hardness < 235HB. It can also be delivered ESR and quenched and tempered to 320 HB.
Grades Comparison
| Germany(DIN) | Japan(JIS) | USA(AISI) | Sweden(SS) | China(GB) |
| 1.2083 | SUS420J2 | 420 | S136 | 4Cr13 |
Chemical Composition(%)
| Steel Grade | Chemical Composition(%) |
| C | Si | Mn | P | S | Cr |
| 1.2083 | 0.36-0.42 | ≤1.00 | ≤1.00 | ≤0.030 | ≤0.030 | 12.50-13.50 |
| SUS420J2 | 0.26-0.35 | ≤1.00 | ≤1.00 | ≤0.035 | ≤0.030 | 12.00-14.00 |
| 420 | 0.26-0.40 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.00-14.00 |
| S136 | 0.38 | 0.90 | 0.50 | ≤0.040 | ≤0.030 | 13.60 |
| 4Cr13 | 0.36-0.45 | ≤0.60 | ≤0.80 | ≤0.035 | ≤0.030 | 12.00-14.00 |
Main characteristics of DIN 1.2083 are :
– a good atmospheric corrosion resistance,
– an excellent polishability,
– a good machinability in annealed condition,
– a high hardenability
– a good wear resistance
Application:
1. Transparent plastic mould
2. Highly stressed cutting and punching tools for thin sheets
3. Stone processing tools and knives for paper and plastics,shear knives
4. Requiring higher food industrial equipment parts and PVC / PP / EP
Heat Treatment:
| Annealing : | 810 - 830 °C |
| Hardness after annealing : | Max. 230 HB |
| Stress relieving: | Approx. 650 °C |
| Hot forming: | 1050 - 850 °C |
| Hardening: | 970 - 990 °C |
| Quenching media: | Oil, Vacuum |
| Hardness after quenching: | 52 - 56 HRC |
Hardness after tempering:
| Tempering °C | 100 | 200 | 300 | 400 |
| HRC | 54 | 52 | 52 | 52 |
Special Stainless Plastic Mould Steel 1.2083 S136 4Cr13
Changfeng Steel hot sale product:
| STANDARD/GRADE | Flat Bar Size(mm) | Round bar Size(mm) | Technics |
| DIN | AISM | JIS | GB(China) | Thickness | Width | Length | Diameter | Length |
| 1.121 | SAE1050 | S50C | 50# | 10-450 | 155-2200 | 2000-12000 | | | Forged, Hot Rolled |
| 1.2311 | P20 | PDS-3 | 3Cr2Mo | 10-460 | 155-2200 | 2000-10000 | 20-200 | 2000-6000 |
| 1.2738 | P20+Ni | - | 3Cr2NiMnMo | 21-300 | 155-2200 | 2000-8000 | 20-200 | 2000-6000 |
| 1.2379 | D2 | SKD10 | SKD10 | 10-200 | 155-810 | 2000-6000 | 14-80 | 3000-6000 |
| 1.2080 | D3 | SKD1 | 3Cr2Mo | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.2083 | 420 | - | 4Cr13 | 10-500 | 155-1200 | 2000-6000 | 12-300 | 3000-6000 |
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | 10-500 | 155-1600 | 2000-6000 | 16-400 | 3000-6000 |
| 1.2510 | O1 | SKS3 | 9CrWMn | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.7225 | SAE4140 | SCM440 | 42CrMo | 10-280 | 155-2200 | 2000-6000 | 16-450 | 3000-6000 |

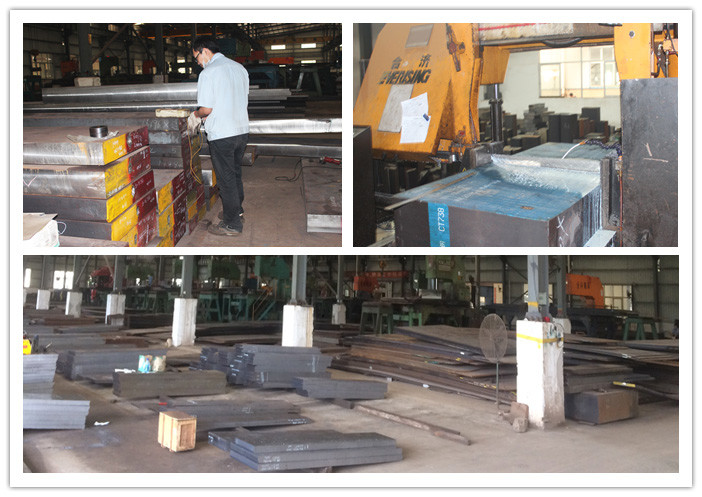

OUR WORKSHOP SHOW
Product Tags:
|
|

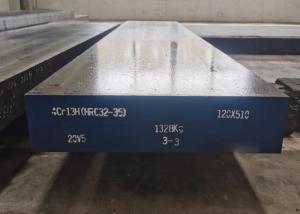

Plastic Die Quenched Tempered SUS420J2 Tool Steel Sheet Images
|
