Black Surface Engineering Steel Bar 1.7225 SCM440 SAE4140 42CrMo4 EN19

Hot Rolled 1.7225 SCM440 SAE4140 42CrMo4 Steel Round Bar

Perform Standard: GB/T 3077-1999

1, Application
It used for section large forgings, such as locomotive traction gears, with supercharger drive gear,
the rear axle, the connecting rod and the spring load greatly clip,oil drill pipe joints and fishing tools,etc.

2, Feature
1) Weldability suffers with increasing chromium content;
2) High temperature strength and high pressure hydrogenation properties are promoted by chromium
and molybdenum;
3) Molybdenum significantly reduces temper brittleness;
4) Chromium renders steel oil hardenable and increase hardenability;
5) Chromium molybdenum high tensile steel with yield strength of 550N/mm2;

3, Mechanical Properties:
Tensile strength:σb (MPa):≥1080(110)
Yield strength:σs (MPa):≥930(95)
Elongation:δ5 (%):≥12
Section shrinkage:ψ (%):≥45
Impact work:Akv (J):≥63
Impact toughness value:αkv (J/cm²):≥78(8)

4, Ready Stock:
Round Bar diameter 14-460mm.All the sizes as require can be customerized as fresh production with MOQ.

5, Delivery state:
Hot rolled, Heat Treatment,black, hardness or tempered hardness:28-34 HRC.
Annealing:HBS<=235.

6, Delivery time
For abundant stock, 15-20 days.For customized products, 30-50 days.
We have full set of equipement (sawing machine/grinding/polishing machine) to make customer's specification.

Listed specifications are only typical grades; products of required specifications can be developed/
produced per international, Chinese or industry standards, or based on agreements with customers.

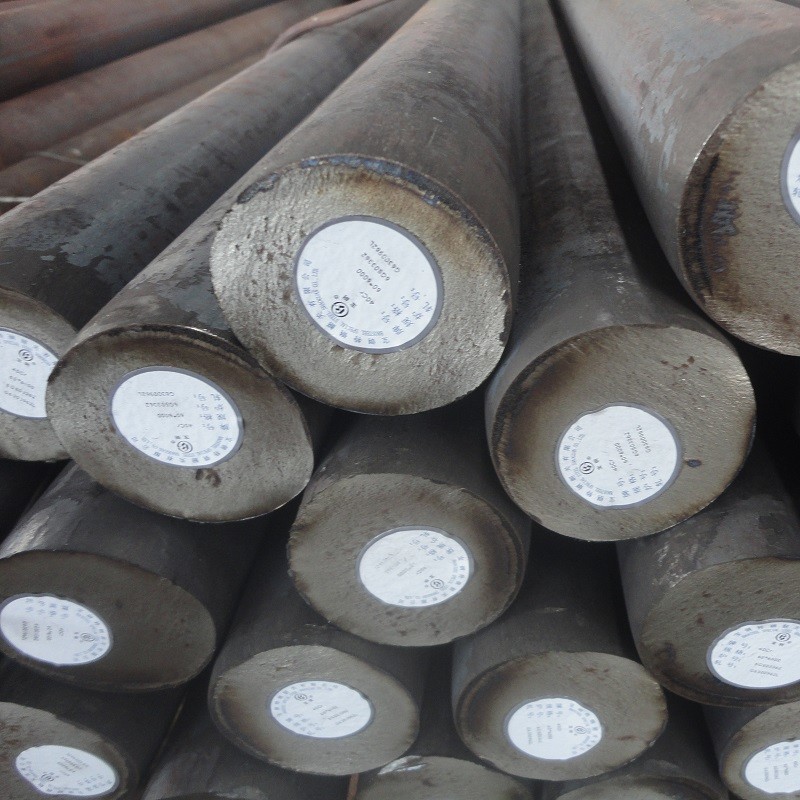

Product Photo

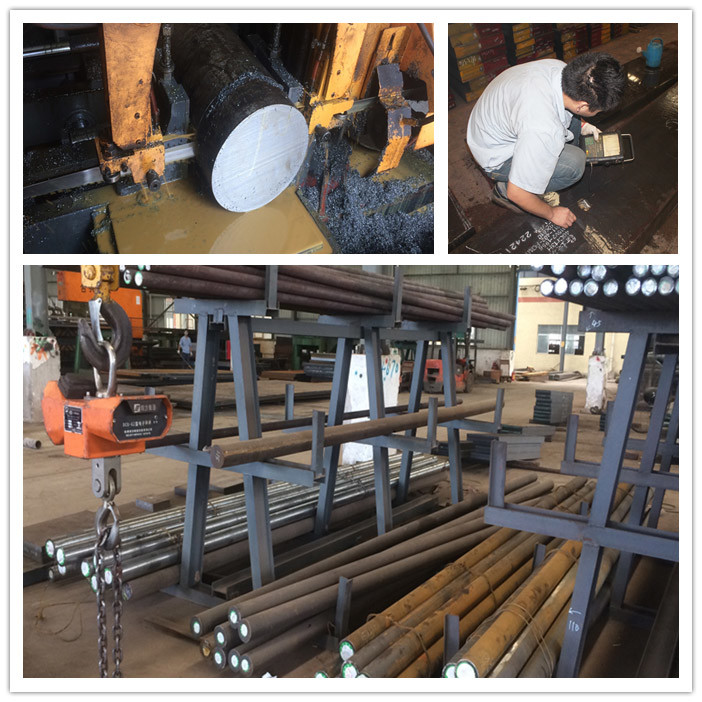

Strict Quality Control
