Pre Hardened PDS-3 P20 1.2311 3Cr2Mo Special Alloy Tool Steel Plate
1.2311 is plastic mould tool steels, suitable to operate in high temperature, used mainly for plastic moulds, hydroforming tools and frames for plastic pressure dies. They are highly hardenable, resistant to tempering and strong in high temperature.
P3Cr2Mo 1.2311 P20 Steel equivalent
| Country | USA | German | GB/T |
| Standard | ASTM A681 | DIN EN ISO 4957 | GB/T 1299 |
| Grade | P20 | 1.2311 | 3Cr2Mo |
P3Cr2Mo 1.2311 P20 steel chemical composition
| Grade | C | Si | Mn | P | S | Cr | Mo |
| P20 | 0.28-0.4 | 0.2-0.8 | 0.6-1 | 0.03 | 0.03 | 1.4-2 | 0.3-0.55 |
P3Cr2Mo 1.2311 P20 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the sales.
Hardening
Harden from a temperature of 830-880oC followed by oil or air quenching or warm bath quenching 180-220oC. Hardness after quenching is 51 HRC.
Tempering
Tempering temperature: See the data bellow.
Forging
Hot forming temperature: 1050-850oC.
Machinability
Machinability is relatively good at about 80% that of the W group water hardening steels
Corrosion Resistance
This is a steel alloy and it will corrode or rust unless protected.
P3Cr2Mo 1.2311 P20 Delivery condition
For hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
Changfeng Tool & Die Steel main product:
| STANDARD/GRADE of steel | Flat Bar Size(mm) | Round bar Size(mm) | Technics |
| DIN | AISM | JIS | GB(China) | Thickness | Width | Length | Diameter | Length |
| 1.121 | SAE1050 | S50C | 50# | 10-450 | 155-2200 | 2000-12000 | | | Forged, Hot Rolled |
| 1.2311 | P20 | PDS-3 | 3Cr2Mo | 10-460 | 155-2200 | 2000-10000 | 20-200 | 2000-6000 |
| 1.2738 | P20+Ni | - | 3Cr2NiMnMo | 21-300 | 155-2200 | 2000-8000 | 20-200 | 2000-6000 |
| 1.2379 | D2 | SKD10 | SKD10 | 10-200 | 155-810 | 2000-6000 | 14-80 | 3000-6000 |
| 1.2080 | D3 | SKD1 | 3Cr2Mo | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.2083 | 420 | - | 4Cr13 | 10-500 | 155-1200 | 2000-6000 | 12-300 | 3000-6000 |
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | 10-500 | 155-1600 | 2000-6000 | 16-400 | 3000-6000 |
| 1.2510 | O1 | SKS3 | 9CrWMn | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.7225 | SAE4140 | SCM440 | 42CrMo | 10-280 | 155-2200 | 2000-6000 | 16-450 | 3000-6000 |
3Cr2Mo 1.2311 P20 Hot Rolled Forged Plastic Mould Steel
Product Tags:
|
|

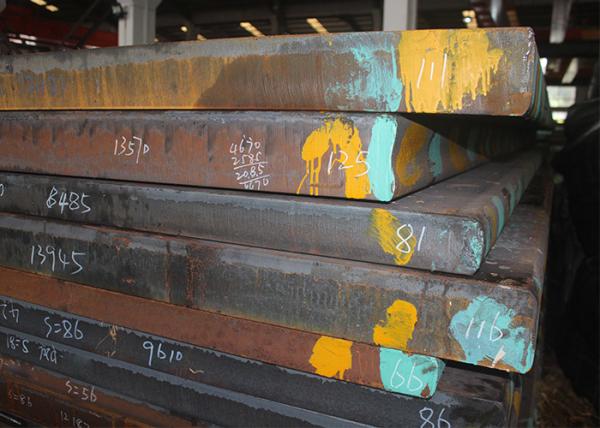

1.2379 Pre Hardened 700mm Special Alloy Tool Steel Plate Images
|
